Payment terminal

Axium DX8000 - Android POS terminal with large touchscreen

The portable Axium DX8000 comes with a built-in receipt roll and a large touchscreen, making it easy to use on the go. It has a powerful battery that lasts all day.

Installation

1. Take out the charging dock and plug the supplied power cord into the dock and the power outlet.

2. Place the terminal in the dock.

Don't forget to put the terminal back in the dock when you're not using it. This will keep it charged and ready to use when you need it.

3. Start the terminal by pressing the power button to the left of the screen.

4. Connect the terminal to mobile Wi-Fi (recommended).

• The DX8000 comes with a mobile network connection, but you should connect it to Wi-Fi if available.
• Connect to Wi-Fi under the Menu icon.
• Select Settings / Network Settings, then select Wi-Fi network and enter the password.

Make sure you have your terminal password available.

5. Since the OPEN GO One is already activated and ready, all you need to do is start the terminal.

TIP

To wake up the terminal when it is turned off, double-click on the screen.

Activate Open GO App

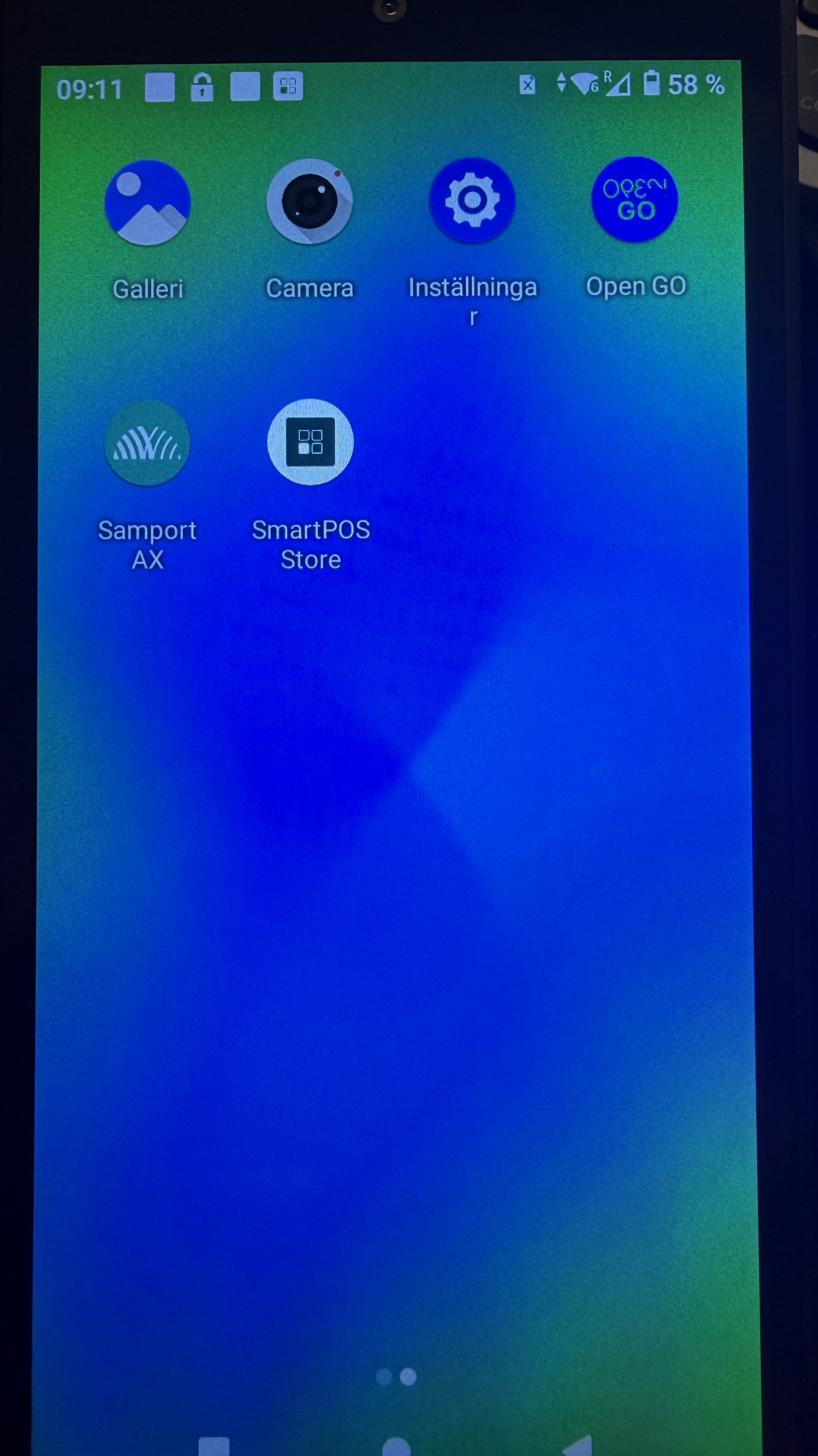

6. Go to the Open GO app in the terminal.

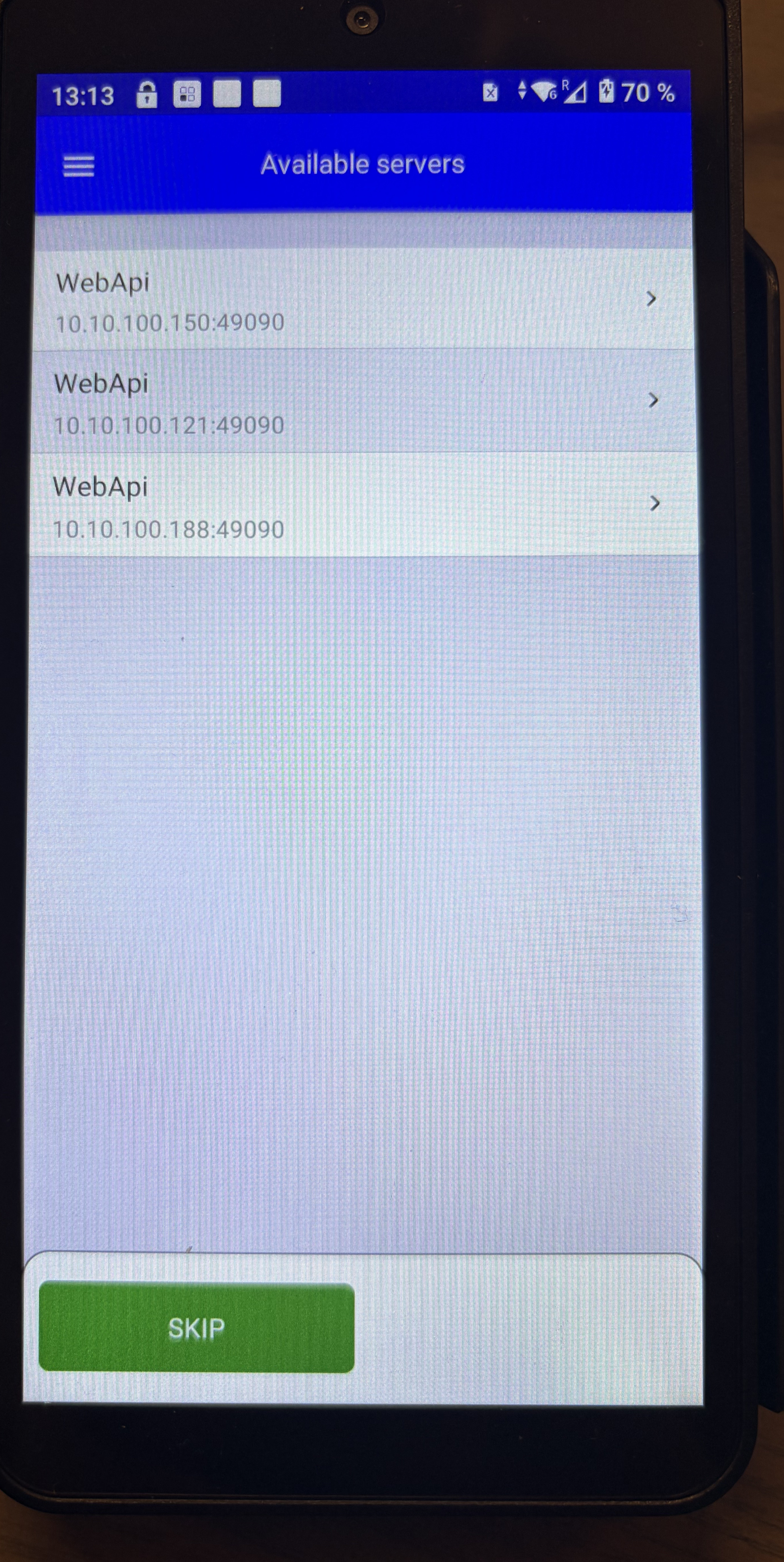

7. Start by select the WebApi.

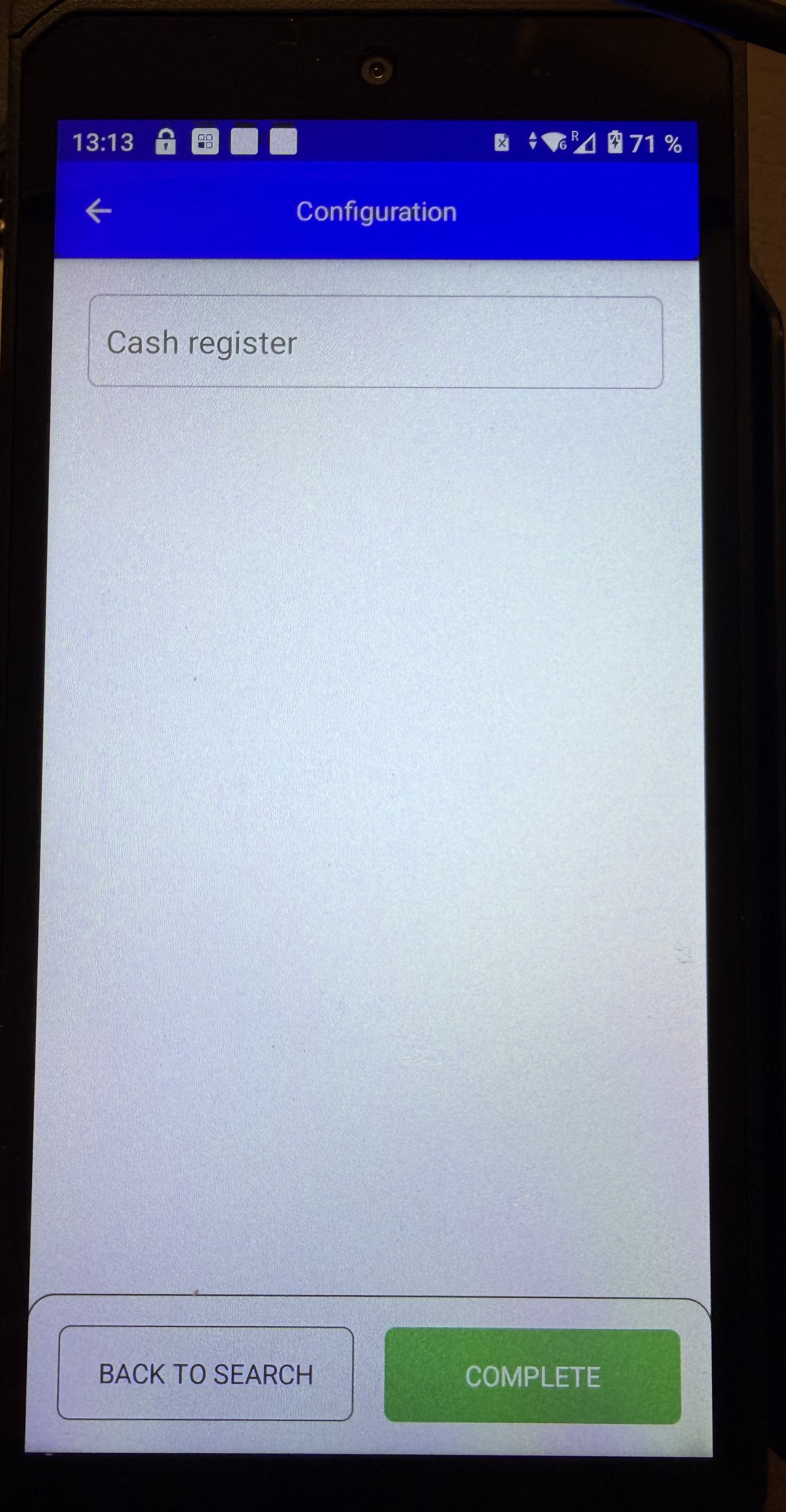

8. Enter your cash register number

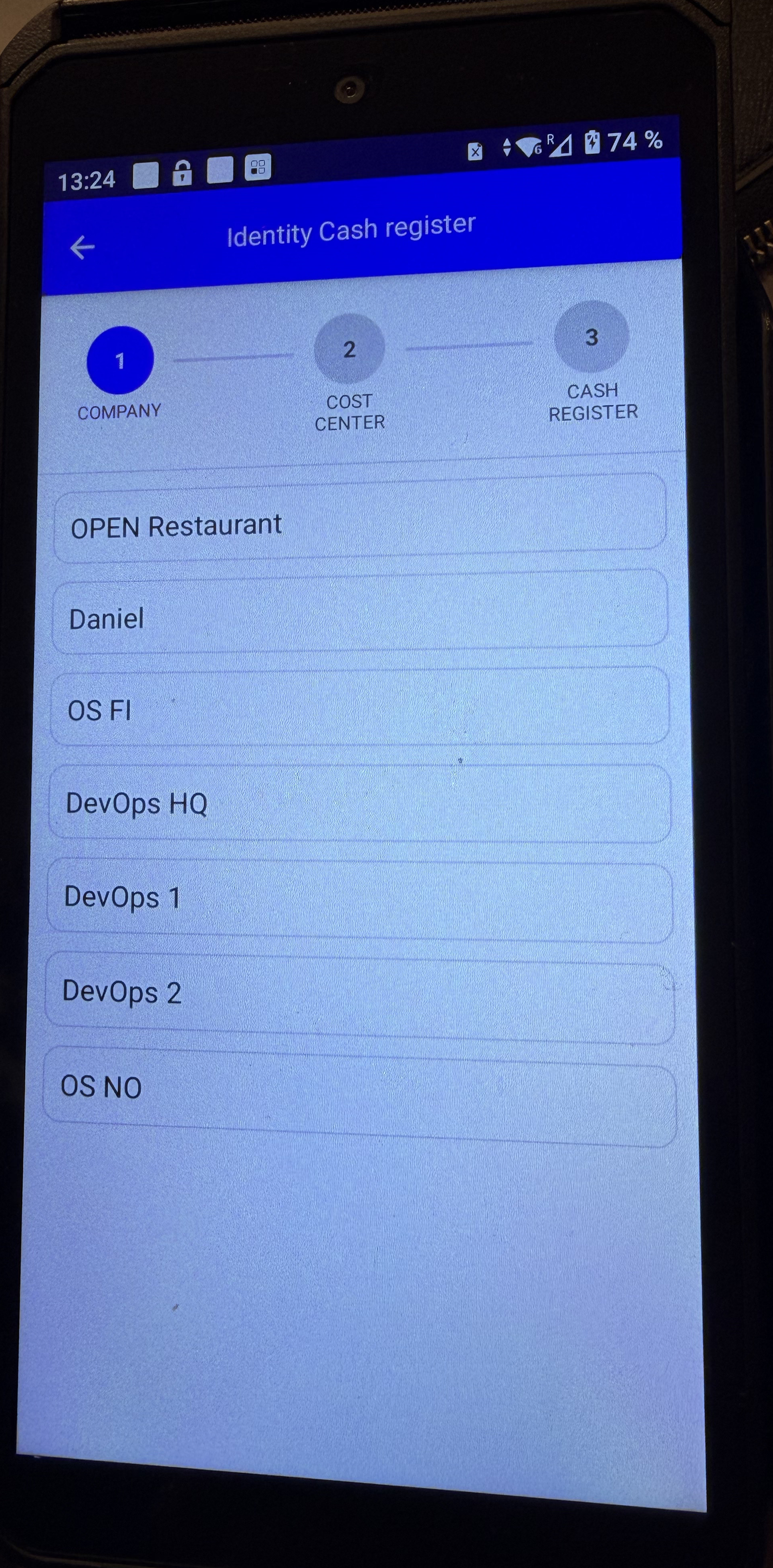

9. Then follow the stepper by:

1. choose company,

2. cost center,

3. and cash register.

10. Enter your pin to log in.

Now it is ready to use!
